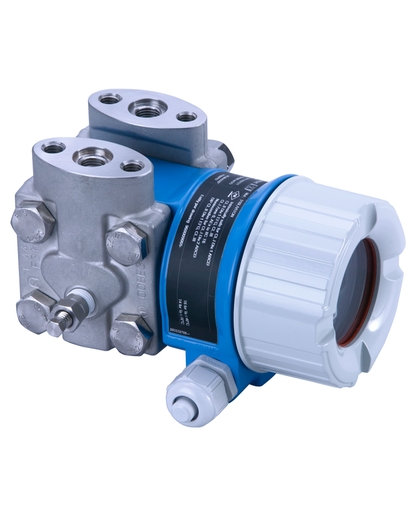

PMD55差壓變送器
- 品牌： E+H
- 型號： PMD55
產品描述
差壓變送器，采用金屬傳感器
現場通信采用HART, PROFIBUS PA 或FF基金會現場總線
優點
-
測量精度: 0,1%，鉑金型: 最高0,075%
-
量程比100:1
-
一體化變送器
- 使用DIP開關快速調試儀表
-
簡單、安全的菜單引導式儀表操作
- 通過顯示單元進行現場操作
- 通過4...20mA HART操作
- 通過PROFIBUS PA操作
- 通過FF基金會現場總線操作
-
模塊化儀表部件，可以與差壓、靜壓和壓力測量?jī)x表(Deltabar M, Deltapilot M, Cerabar M)的模塊部件進行互換，如：
- 可替換顯示單元
- 通用性電子插件
-
通過多項國際認證
應用領域
The Deltabar M差壓變送器可用于一下測量：
-
氣體、蒸氣和液體的流量測量（體積流量或質量流量）
技術參數
Continuous / Liquids
Gas
Liquids
Pressure
Steam
Measuring Principle Differential pressure Characteristic / Application Digital transmitter with metallic measuring diaphragms
Compact size
Modular transmitter
Long-term stability
Supply / Communication 4...20mA HART:
11,5...45V DC
Ex ia: 11,5...30V DC
Accuracy 0,1%
"PLATINUM" 0,075%
Long term stability 0,05% of URL/year
0,125% of URL/5 years
Ambient temperature -40°C...85°C
(-40°F...185°F)
Process temperature -40°C...120°C
(-40°F...248°F)
Process pressure absolute / max. overpressure limit -40°C...120°C
(-40°F...248°F)
Pressure measuring range 10mbar...40bar
(0.15...580psi)
Main wetted parts 316L
Process connection 1/4-18 NPT
Output 4...20mA HART
PROFIBUS PA
FOUNDATION Fieldbus
Certificates / Approvals ATEX
FM
CSA
IECEx
TIIS
NACE
SIL
EN10204-3.1
Options 4-line digital display
Aluminium housing
Application limits Measuring cell:
Metal welded
-
液體的液位、體積或質量測量
-
過濾器和泵的差壓監測
